Watsonx Orchestrate is IBM’s platform to run agentic systems. Developers can run Orchestrate locally via containers. This post describes how to run agents and models via APIs.
Watsonx Orchestrate provides APIs which require bearer tokens. If you run the Agent Developer Kit and the Orchestrate Developer Edition locally, you can get the token from a configuration file.
1
2
3
4
cat ~/.cache/orchestrate/credentials.yaml
auth:
local:
wxo_mcsp_token: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJz.....
There are multiple APIs to run agents and models:
- /chat/completions
- /chat/completions with streaming
- /orchestrate/runs
- /orchestrate/runs/stream
- /completions
- /completions/chat
The /chat/completions endpoint is very similar to the OpenAI /chat/completions endpoint. This allows integrations of Orchestrate agents in other systems, IDEs, etc.
The /orchestrate/runs endpoints contain more functionality and data, for example messages can contain outputs from tools. There are also parameters to define detailled model settings, for example to set greedy and temperature to 0.
Below are example invocations and responses for the different endpoints.
/chat/completions
Chat with Agents without Streaming: /chat/completions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
curl --request POST \
--url http://localhost:4321/api/v1/orchestrate/845c51d3-3d16-4fdf-b00a-ade8c3dd8f6f/chat/completions \
--header 'Authorization: Bearer xxx' \
--header 'Content-Type: application/json' \
--data '{
"stream": false,
"messages": [
{
"role": "user",
"content": "Hi"
}
]
}'
{
"id": "42a375eb-eec8-435f-847c-8576ee07ffa9",
"object": "chat.completion",
"created": 1752578550,
"model": "watsonx/meta-llama/llama-3-2-90b-vision-instruct",
"choices": [
{
"index": 0,
"message": {
"role": "assistant",
"content": "Hello! I am Watsonx Orchestrate, an AI assistant, created by IBM. How can I help you today?"
},
"finish_reason": "stop"
}
],
"thread_id": "c61c0bf7-da32-4222-b9ce-308ed08a70af"
}
/chat/completions with stream
Chat with Agents with Streaming: /chat/completions
The following command is a simple example. Check out the documentation for more options.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
curl --request POST \
--url http://localhost:4321/api/v1/orchestrate/6a3f4980-73f2-4e7f-b920-2b4189ba2919/chat/completions \
--header 'Authorization: Bearer xxx' \
--header 'Content-Type: application/json' \
--data '{
"stream": true,
"messages": [
{
"role": "user",
"content": "Hi"
}
]
}'
data: {
"id": "1752578970445-0",
"object": "thread.message.delta",
"thread_id": "226c9477-4be0-4f71-b849-bb624f0c1414",
"model": "watsonx/meta-llama/llama-3-2-90b-vision-instruct",
"created": 1752578970,
"choices": [
{
"delta": {
"role": "assistant",
"content": "Hello"
}
}
]
}
...
data: {
"id": "1752578971251-0",
"object": "thread.message.delta",
"thread_id": "226c9477-4be0-4f71-b849-bb624f0c1414",
"model": "watsonx/meta-llama/llama-3-2-90b-vision-instruct",
"created": 1752578971,
"choices": [
{
"delta": {
"role": "assistant",
"content": "?"
}
}
]
}
/orchestrate/runs
Chat With Orchestrate Agent without Streaming: /orchestrate/runs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
curl --request POST \
--url http://localhost:4321/api/v1/orchestrate/runs \
--header 'Authorization: Bearer xxx' \
--header 'Content-Type: application/json' \
--data '{
"message": {
"role": "user",
"content": "Hi"
},
"agent_id": "6a3f4980-73f2-4e7f-b920-2b4189ba2919"
}'
{
"thread_id": "2bd3d825-17e5-43d1-8740-72b4cd41f34f",
"run_id": "c5af3b86-16c6-4ef7-984a-ca9622a6da82",
"task_id": "c9aa1e28-0f61-487e-b92e-bf18eb5f4a64",
"message_id": "c7a6b2bd-d91b-4286-bcbd-4ef754765118"
}
Non-streaming requests return immediately with ids that can be used to pull for updates.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
curl --request GET \
--url http://localhost:4321/api/v1/orchestrate/runs/c5af3b86-16c6-4ef7-984a-ca9622a6da82 \
--header 'Authorization: Bearer xxx'
{
"id": "c5af3b86-16c6-4ef7-984a-ca9622a6da82",
"tenant_id": "4a33ea33-b28c-4304-a71e-7abd8939f50b",
"assistant_id": null,
"thread_id": "2bd3d825-17e5-43d1-8740-72b4cd41f34f",
"status": "completed",
"started_at": "2025-07-15T13:09:08.278876Z",
"completed_at": "2025-07-15T13:09:11.335076Z",
"failed_at": null,
"cancelled_at": null,
"llm_params": null,
"usage": null,
"last_error": null,
"result": {
"data": {
"message": {
"id": "a8a3b6d5-275e-48c2-bd74-2854f29146c6",
"role": "assistant",
"content": [
{
"id": "1",
"text": "Hello! I am watsonx Orchestrate, an AI assistant, created by IBM. How can I help you today?",
"response_type": "text"
}
],
"context": null,
"mentions": null,
"assistant": {
"is_default": true
},
"tenant_id": "4a33ea33-b28c-4304-a71e-7abd8939f50b",
"thread_id": "2bd3d825-17e5-43d1-8740-72b4cd41f34f",
"created_by": "f242eadf-0dc9-4eae-b2d7-65b09b4b4b16",
"created_on": "2025-07-15T13:09:11.307370Z",
"updated_at": "2025-07-15T13:09:11.307370Z",
"document_ids": null,
"step_history": [],
"message_state": null,
"parent_message_id": "c7a6b2bd-d91b-4286-bcbd-4ef754765118",
"created_by_username": "wxo.archer@ibm.com",
"additional_properties": {
"display_properties": {
"is_async": false,
"skip_render": false
}
}
},
"message_id": "a8a3b6d5-275e-48c2-bd74-2854f29146c6",
"target_run_id": null,
"correlation_id": null,
"flowinstance_id": null
},
"type": "message_created"
},
"guardrails": null,
"agent_id": null,
"additional_parameters": null
}
/orchestrate/runs/stream

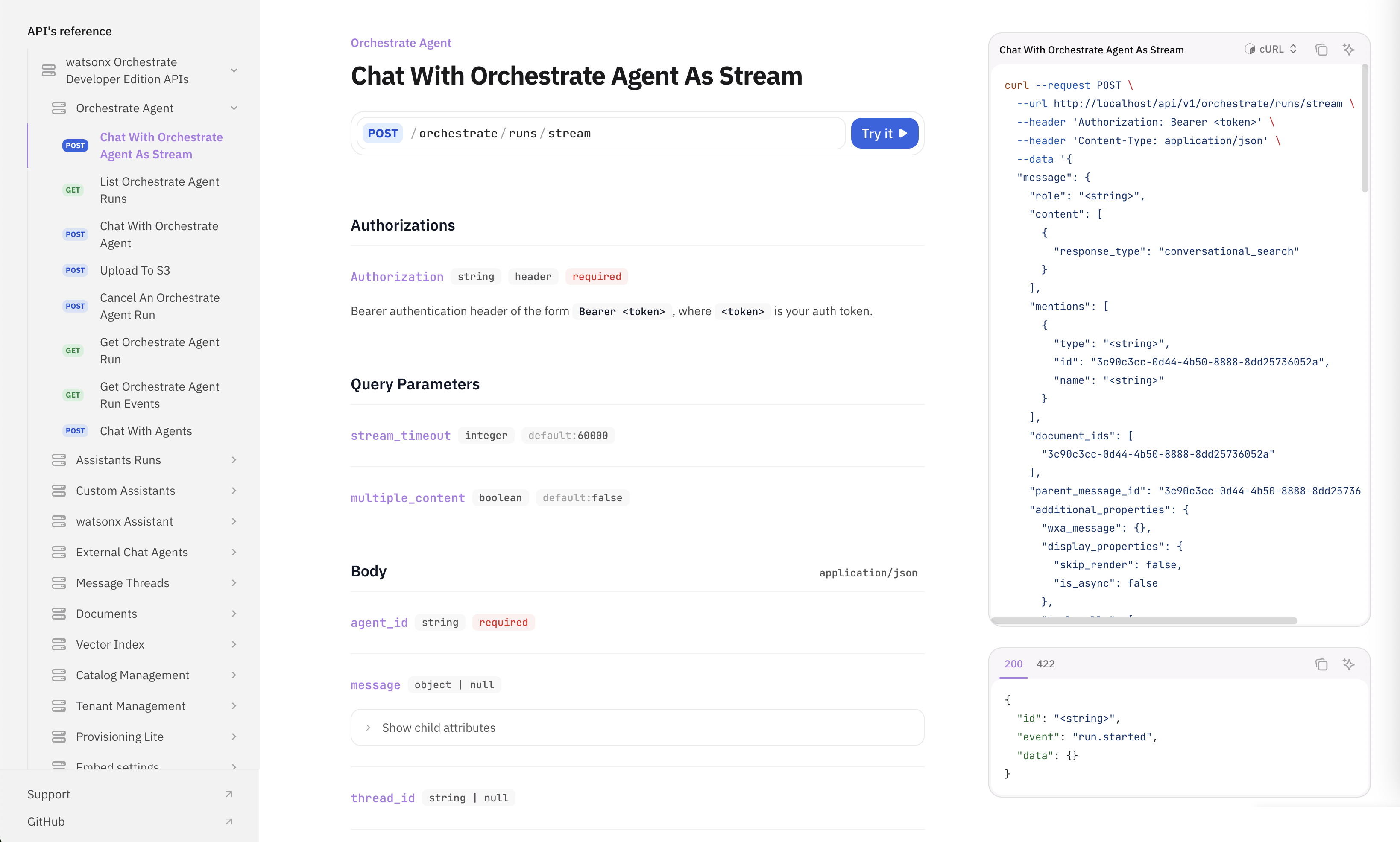

Chat With Orchestrate Agent with Streaming: /orchestrate/runs/stream
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
curl --request POST \
--url http://localhost:4321/api/v1/orchestrate/runs/stream \
--header 'Authorization: Bearer xxx' \
--header 'Content-Type: application/json' \
--data '{
"message": {
"role": "user",
"content": "Hi"
},
"agent_id": "6a3f4980-73f2-4e7f-b920-2b4189ba2919"
}'
[
{
"id": "1752584948287-0",
"event": "run.started",
"data": {
"run_id": "c5af3b86-16c6-4ef7-984a-ca9622a6da82",
"thread_id": "2bd3d825-17e5-43d1-8740-72b4cd41f34f"
}
},
{
"id": "1752584948294-0",
"event": "message.started",
"data": {
"thread_id": "2bd3d825-17e5-43d1-8740-72b4cd41f34f",
"run_id": "c5af3b86-16c6-4ef7-984a-ca9622a6da82"
}
},
{
"id": "1752584950473-0",
"event": "message.delta",
"data": {
"thread_id": "2bd3d825-17e5-43d1-8740-72b4cd41f34f",
"run_id": "c5af3b86-16c6-4ef7-984a-ca9622a6da82",
"delta": {
"role": "assistant",
"content": [
{
"id": "1",
"response_type": "text",
"text": "Hello"
}
]
}
}
},
...
{
"id": "1752584951233-0",
"event": "message.delta",
"data": {
"thread_id": "2bd3d825-17e5-43d1-8740-72b4cd41f34f",
"run_id": "c5af3b86-16c6-4ef7-984a-ca9622a6da82",
"delta": {
"role": "assistant",
"content": [
{
"id": "1",
"response_type": "text",
"text": "?"
}
]
}
}
},
{
"id": "1752584951329-0",
"event": "message.created",
"data": {
"thread_id": "2bd3d825-17e5-43d1-8740-72b4cd41f34f",
"message_id": "a8a3b6d5-275e-48c2-bd74-2854f29146c6",
"run_id": "c5af3b86-16c6-4ef7-984a-ca9622a6da82",
"message": {
"id": "a8a3b6d5-275e-48c2-bd74-2854f29146c6",
"tenant_id": "4a33ea33-b28c-4304-a71e-7abd8939f50b",
"created_by": "f242eadf-0dc9-4eae-b2d7-65b09b4b4b16",
"created_by_username": "wxo.archer@ibm.com",
"created_on": "2025-07-15T13:09:11.307370Z",
"updated_at": "2025-07-15T13:09:11.307370Z",
"thread_id": "2bd3d825-17e5-43d1-8740-72b4cd41f34f",
"assistant": {
"is_default": true
},
"parent_message_id": "c7a6b2bd-d91b-4286-bcbd-4ef754765118",
"role": "assistant",
"content": [
{
"response_type": "text",
"id": "1",
"text": "Hello! I am watsonx Orchestrate, an AI assistant, created by IBM. How can I help you today?"
}
],
"mentions": null,
"document_ids": null,
"additional_properties": {
"display_properties": {
"skip_render": false,
"is_async": false
}
},
"context": null,
"step_history": [],
"message_state": null
}
}
},
{
"id": "1752584951342-0",
"event": "run.completed",
"data": {
"run_id": "c5af3b86-16c6-4ef7-984a-ca9622a6da82",
"thread_id": "2bd3d825-17e5-43d1-8740-72b4cd41f34f"
}
},
{
"id": "1752584951357-0",
"event": "done",
"data": {
"run_id": "c5af3b86-16c6-4ef7-984a-ca9622a6da82",
"thread_id": "2bd3d825-17e5-43d1-8740-72b4cd41f34f"
}
}
]
In case you’re wondering ‘http://localhost:4321/api/v1/orchestrate/runs?stream=true’ is identical to ‘http://localhost:4321/api/v1/orchestrate/runs/stream’.
/completions
Additionally, there are endpoints to run models without agents.
Create Completion: /completions
1
2
3
4
5
6
7
8
curl --request POST \
--url http://localhost:4321/api/v1/completions \
--header 'Authorization: Bearer xxx' \
--header 'Content-Type: application/json' \
--data '{
"model": "mistralai/mistral-large",
"prompt": "Hi"
}'
/completions/chat
Create Chat Completion: /completions/chat
1
2
3
4
5
6
7
8
9
10
11
12
13
14
curl --request POST \
--url http://localhost:4321/api/v1/completions/chat \
--header 'Authorization: Bearer xxx' \
--header 'Content-Type: application/json' \
--data '{
"model": "watsonx/meta-llama/llama-3-3-70b-instruct",
"messages": [
{
"role": "user",
"content": "Hi"
}
],
"stream": false
}'
Next Steps
There is also an endpoint assistants/your-assistant_id/runs to run assistants directly.
To find out more, check out the following resources:
