watsonx Orchestrate provides observability through a native integration with an open-source project known as Langfuse, an LLM engineering platform supporting traces and observations. This post shows how understand how a simple Orchestrate agent works.
As example let’s use the existing example ibm_knowledge which comes with two PDF files that contain information to answer the question ‘When was IBM founded?’.
Trajectory

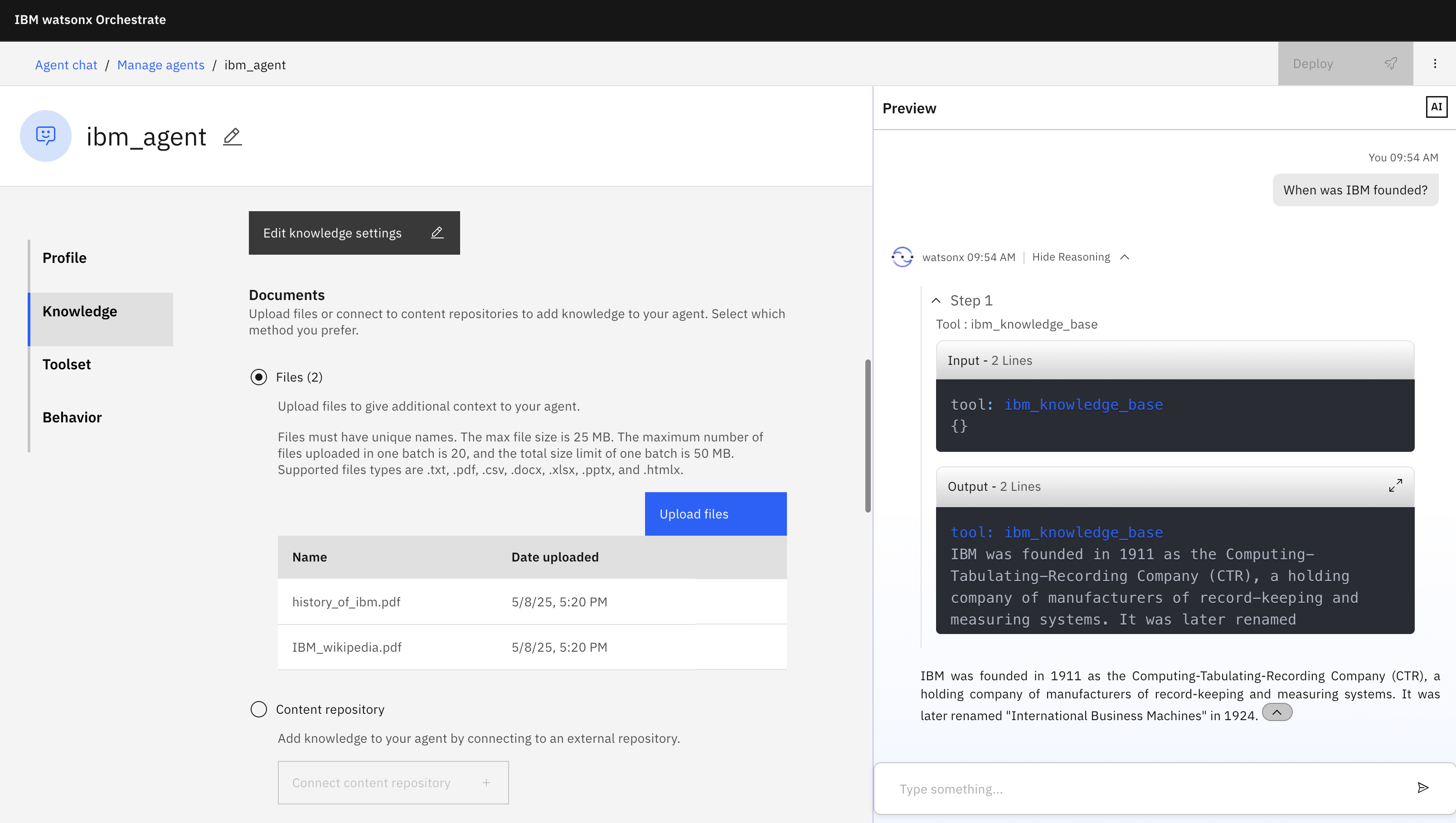

The user interface displays the trajectory on a high level. The agent ‘ibm_agent’ uses a knowledge base which is accessed like other tools.
Step 1

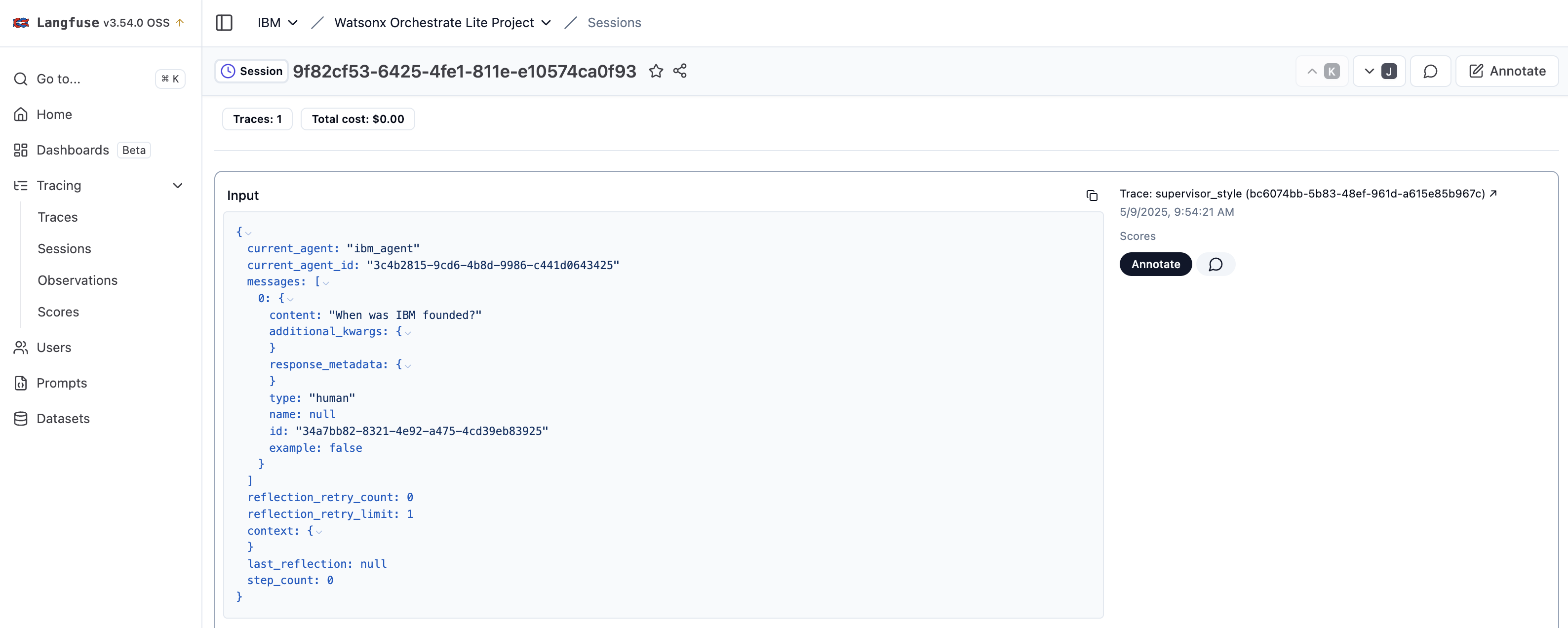

To understand more details of the flow, Langfuse can be used. Under sessions and traces the user input is displayed.
Step 2

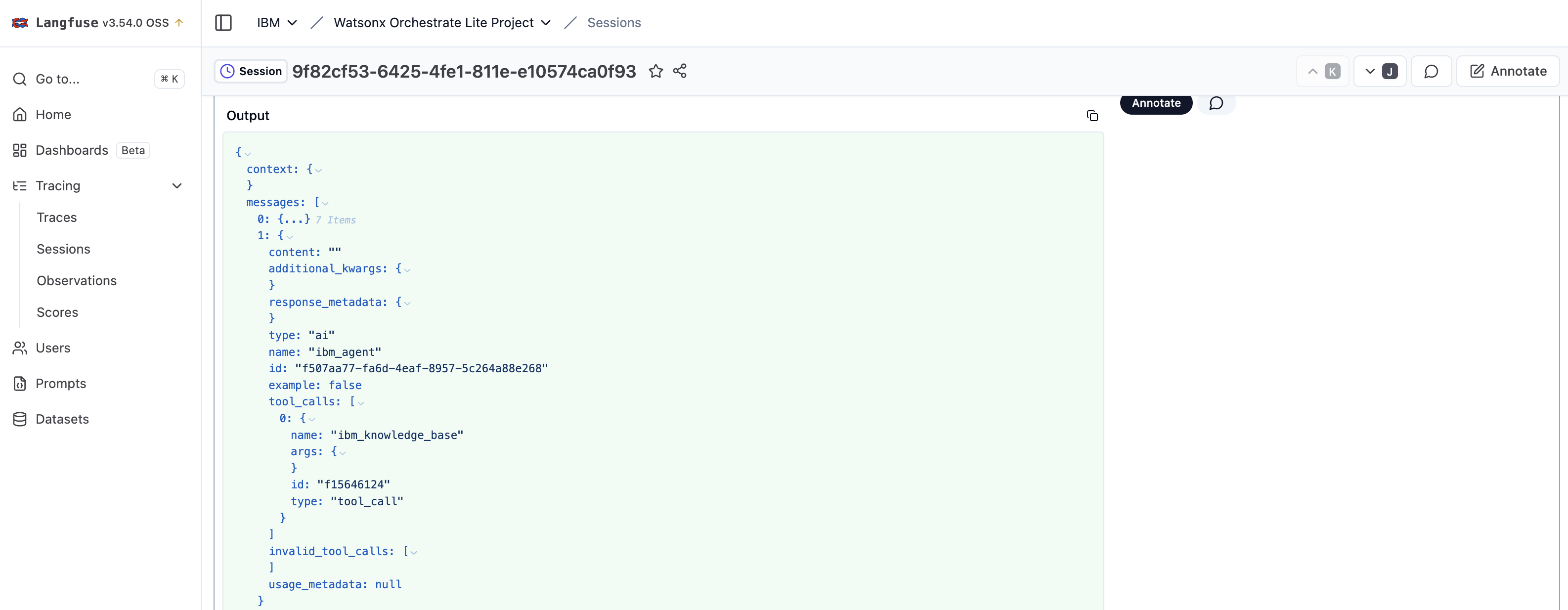

Based on the user input the agent invokes the tool ‘ibm_knowledge_base’ which is provided by Orchestrate for your custom knowledge base.
Step 3

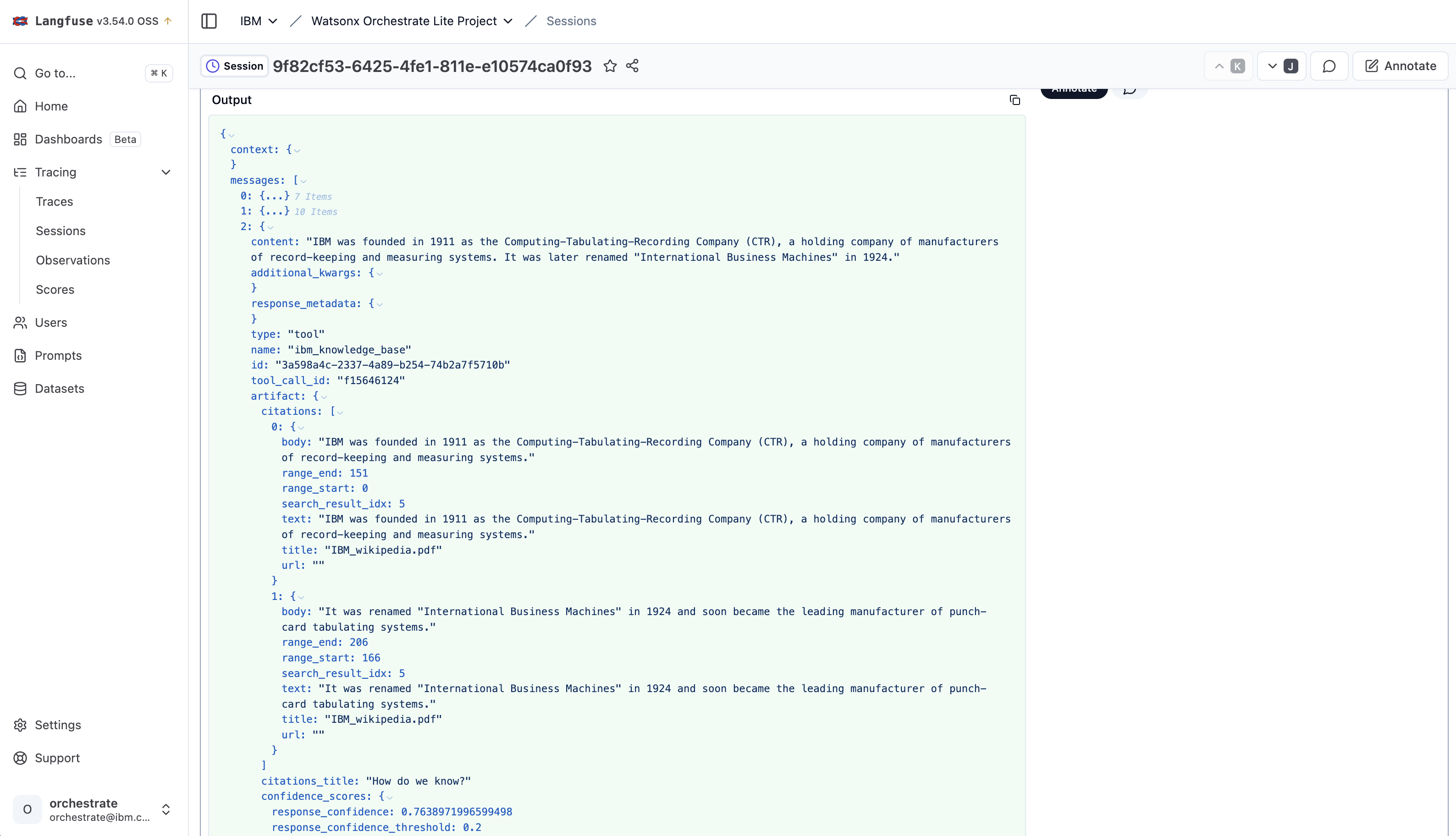

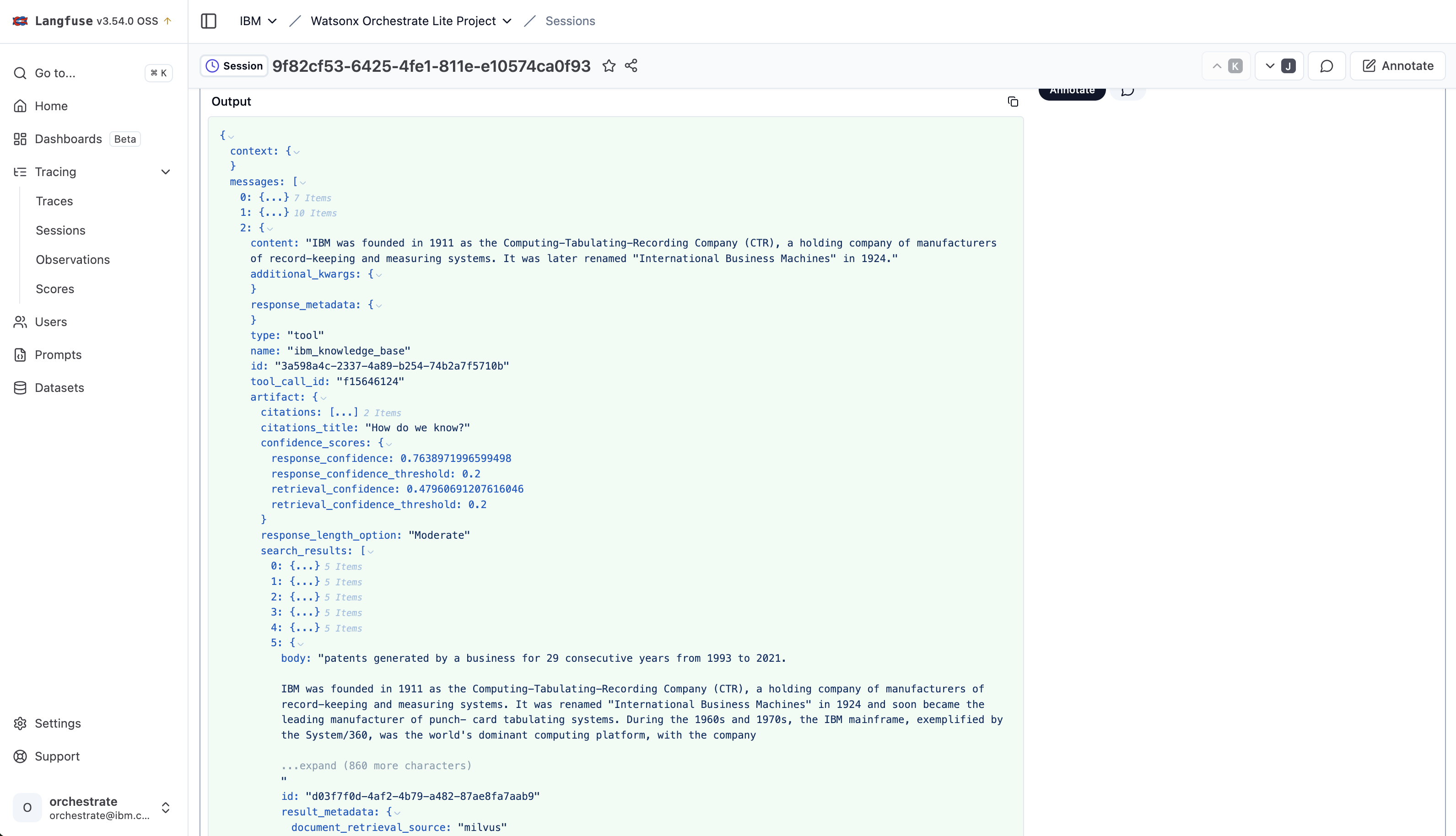

In the next set of traces you can see that the tool performs different steps for RAG (Retrieval Augmented Generation).
- Search the vector store for the 10 most relevant document chunks
- Identify the most relevant document chunks required for the citiations section and to generate the answer
- Generate the answer
Step 4

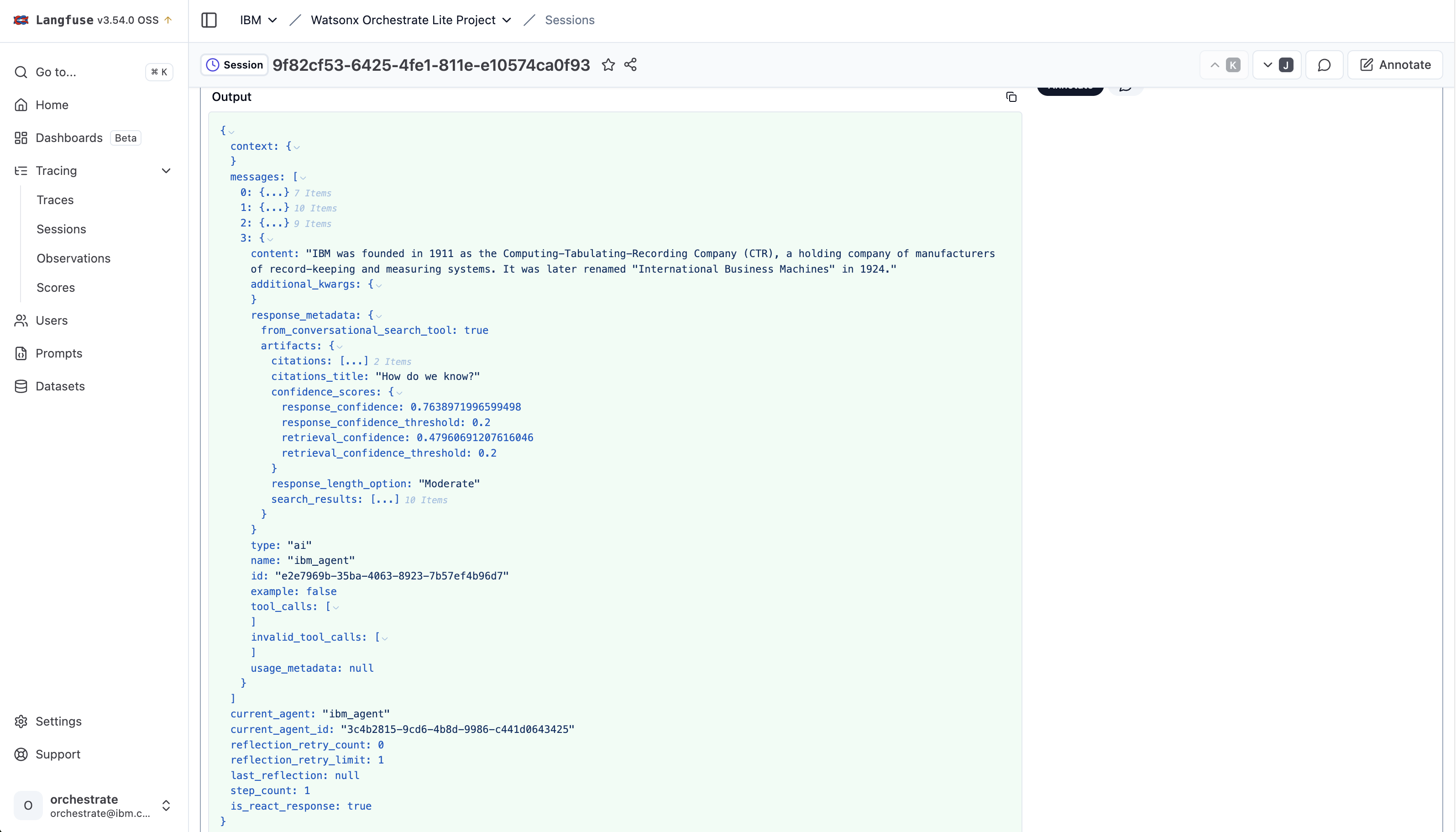

In the last step the ‘ibm_agent’ creates the final message which is returned to the user.

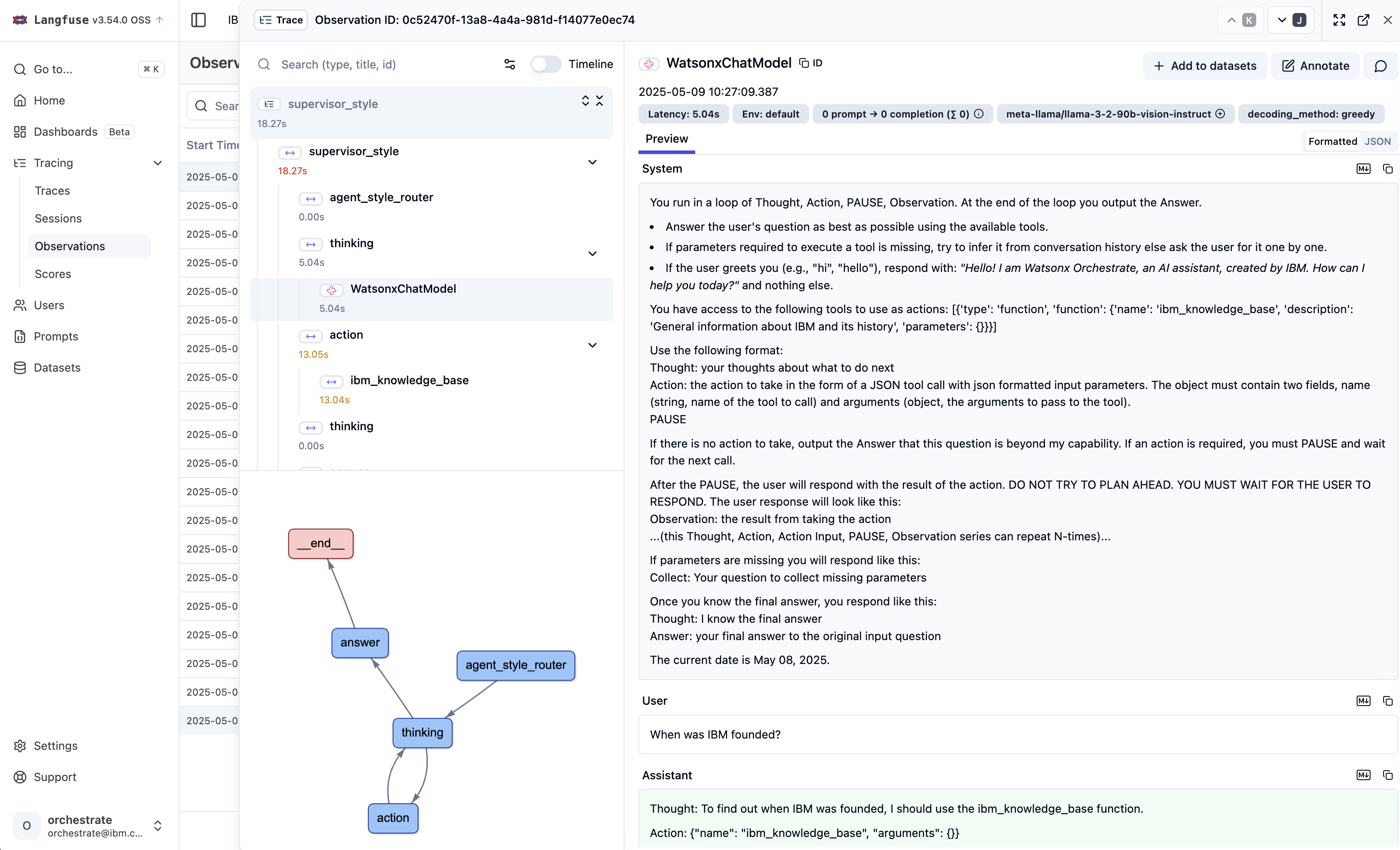

LangGraph

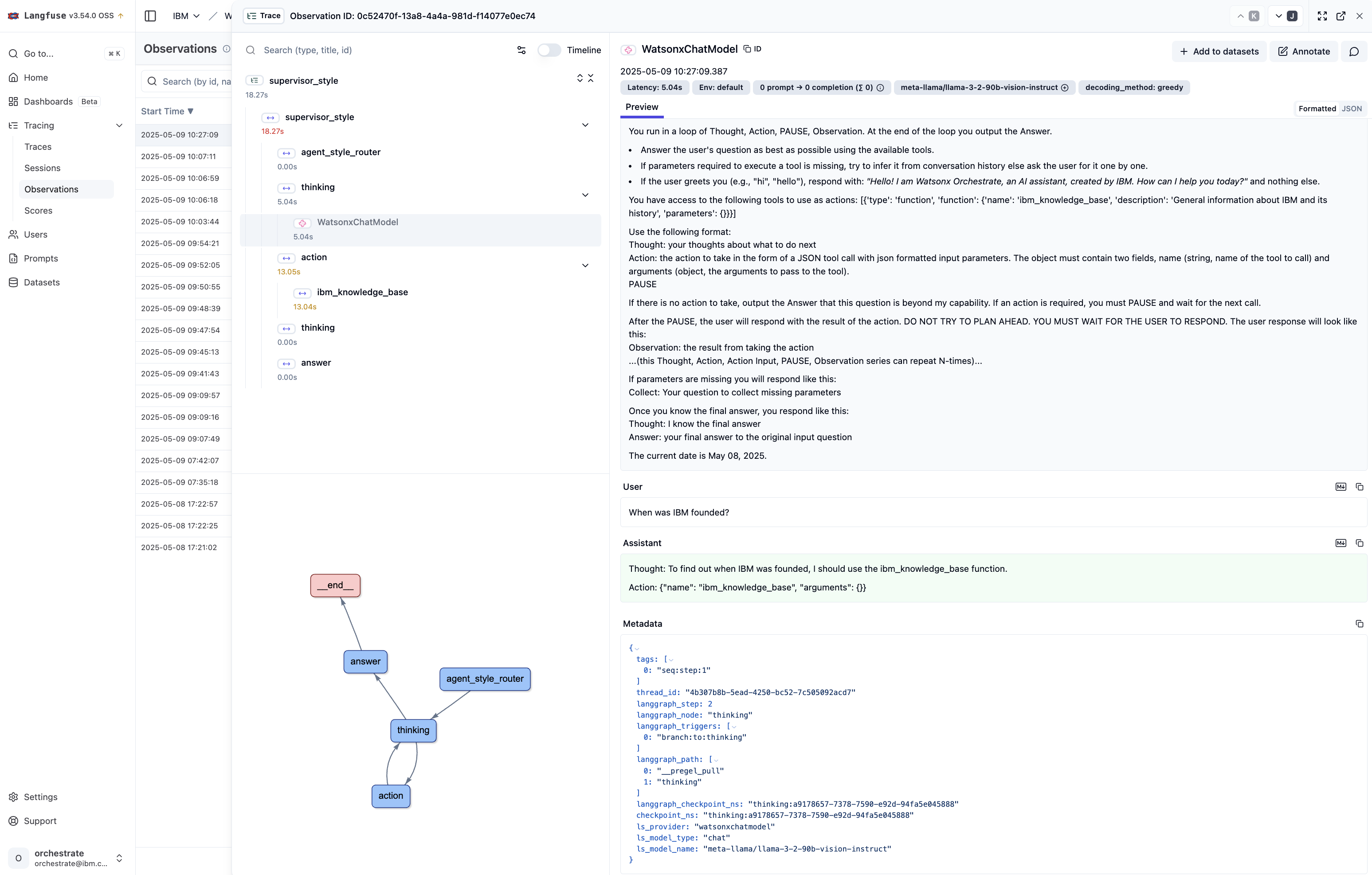

Under ‘Observations’ you can find more details:
- LangGraph is used by Orchestrate
- Prompt how to create thoughts and actions and how to invoke tools
- meta-llama/llama-3-2-90b-vision-instruct is utilized
Setup
The setup of Langfuse in the watsonx Orchestrate Developer Edition is easy.
1
2
3
4
5
6
7
8
git clone https://github.com/IBM/ibm-watsonx-orchestrate-adk.git
cd /Users/niklasheidloff/Desktop/orchestrate-adk
# configure .env
orchestrate server start --env-file=./.env -l
# output: You can access the observability platform Langfuse at http://localhost:3010, username: orchestrate@ibm.com, password: orchestrate
cd /Users/niklasheidloff/Desktop/orchestrate-adk/ibm-watsonx-orchestrate-adk/examples/agent_builder/ibm_knowledge
sh import_all.sh
orchestrate chat start
You can also use the hosted Langfuse instance - see monitoring documentation.
Next Steps
To learn more, check out the watsonx Orchestrate documentation and the watsonx Orchestrate Agent Development Kit landing page.
